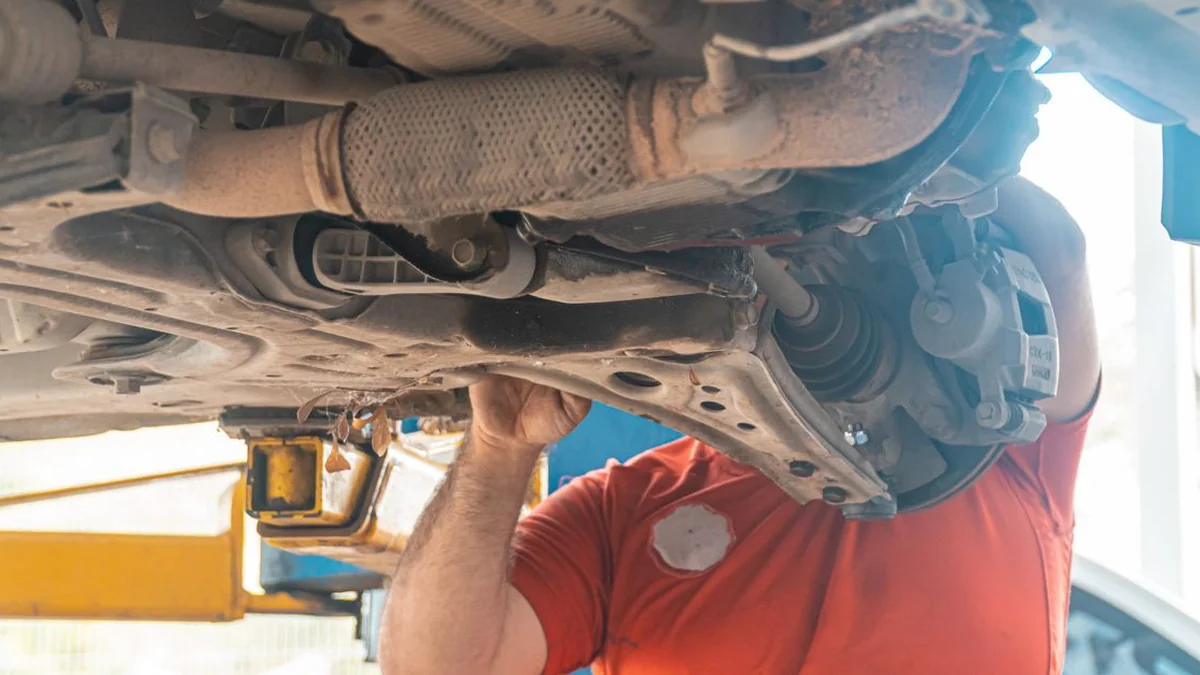

Vehicle undercarriages across the coastal South Carolina Lowcountry operate in an unforgiving physical and chemical environment. Navigating the heavy transit routes of North Charleston—from industrial routes along Interstate 26 and the Mark Clark Expressway (I-526) to surface traffic on Rivers Avenue and Dorchester Road—places continuous strain on chassis systems. High relative humidity averaging between 75% and 85%, seasonal tropical rains that leave standing brackish water on road shoulders, and airborne maritime salt fog from the Cooper and Ashley Rivers accelerate electrochemical corrosion across exposed metals. Unchecked rust seizes brake caliper slide pins, fuses suspension eccentric adjustment bolts, degrades hydraulic fluid through moisture absorption, and causes uneven tire wear.
Hydraulic Braking Mechanics and Caliper Overhaul Engineering
The automotive hydraulic braking system operates under Pascal’s Principle: pressure exerted on a confined fluid is transmitted equally in all directions throughout the circuit. Depressing the brake pedal forces master cylinder pistons to pressurize hydraulic fluid, which travels through steel brake lines and flexible hoses to actuate brake caliper pistons at each wheel.
+-----------------------------------------------------------------------------------------+
| HYDRAULIC BRAKE SUBSYSTEM MATRIX |
+--------------------------+-----------------------+------------------+-------------------+
| Component | Operating Pressure | Thermal Window | Primary Failure |
+--------------------------+-----------------------+------------------+-------------------+
| Master Cylinder | 800 to 2,000 PSI | Under-Hood Temp | Internal Bypass |
| Hard Steel Lines | Up to 3,000 PSI Peak | Ambient / Road | Pitting Corrosion |
| Flexible Rubber Lines | 1,200 to 1,800 PSI | High (Near Rotor)| Dry Rot / Bulging |
| Caliper Assembly | 1,000 to 2,000 PSI | 300°F to 1,200°F | Seized Piston/Pins|
| Rotor / Pad Interface | Mechanical Clamping | 200°F to 1,400°F | Glazing / Runout |
+--------------------------+-----------------------+------------------+-------------------+
The Caliper Overhaul Sequence: Floating vs. Fixed Assemblies
Brake calipers encounter extreme thermal cycles combined with external road spray, leading to seized components:
-
Floating (Sliding) Calipers: These use one or two hydraulic pistons on the inboard side, sliding along lubricated steel guide pins to clamp both brake pads against the rotor. In coastal North Charleston, moisture breaches the rubber dust boots, corroding the slide pins. Once seized, the caliper cannot release fully, dragging the pads against the rotor, causing brake pedal pulsation, overheating the wheel hub, and rapidly wearing down the inboard pad.
-
Fixed Multi-Piston Calipers: Common on heavy-duty commercial trucks, performance cars, and modern luxury SUVs, fixed calipers use opposed pistons (4 to 6 per caliper) mounted rigidly to the steering knuckle. Overhauling these units requires extracting pistons with low-pressure compressed air, honing cylinder bores to remove micro-galling, replacing square-cut EPDM hydraulic seals, and installing fresh dust boots.
[ Depressurized Caliper Removed from Spindle ]
|
v
[ Pneumatic Piston Extraction & Bore Cleaning ]
|
[ Inspect Aluminum / Iron Cylinder Bore for Pitting ]
|
+---------------------+---------------------+
| |
[ Bore Pitted / Scored ] [ Bore Within Tolerance ]
| |
(Caliper Housing Condemned; (Install Square-Cut EPDM Seal,
Replace Complete Unit) Lubricate Bore with Clean Fluid)
| |
+---------------------+---------------------+
|
v
[ Press in Ceramic-Coated / Stainless Piston & Boot ]
|
v
[ Polish & Re-Grease Slide Pins with Silicone-Ceramic Paste ]
Rotor Metallurgy, Lateral Runout, and Thickness Variation
Brake rotors convert kinetic energy into heat through friction:
-
Discard Thickness (DTV): Technicians measure rotor thickness using a micrometer at eight points along the friction ring. If thickness variation exceeds 0.0005 inches, or if thickness falls below the manufacturer's cast-in minimum discard specification, the rotor must be replaced.
-
Measuring Lateral Runout: Mounted rotors are measured with a dial indicator. Lateral runout must remain under 0.002 inches (0.05 mm). Any greater deviation causes the spinning rotor to knock the caliper pads back into the bore, resulting in brake pedal shudder under deceleration.
Fluid Chemistry and Closed-Loop Pneumatic Bleeding
Standard glycol-based DOT 3 and DOT 4 brake fluids are hygroscopic; they naturally pull moisture directly from ambient air through microscopic pores in flexible rubber hoses and reservoir vent caps.
+-----------------------------------------------------------------------------------------+
| BRAKE FLUID DEGRADATION MATRIX |
+--------------------------+-----------------------+------------------+-------------------+
| Fluid Specification | Dry Boiling Point | Wet Boiling Point| Water Saturation |
+--------------------------+-----------------------+------------------+-------------------+
| DOT 3 (Glycol-Ether) | 401°F (205°C) | 284°F (140°C) | 3.7% Water Content|
| DOT 4 (Borate Ester) | 446°F (230°C) | 311°F (155°C) | 3.7% Water Content|
| DOT 5.1 (High Perform.) | 500°F (260°C) | 356°F (180°C) | 3.7% Water Content|
| Moisture-Saturated Fluid | Drops Below 300°F | Vapor Lock Risk | > 4.0% Water Cont.|
+--------------------------+-----------------------+------------------+-------------------+
The Mechanism of Vapor Lock
When contaminated brake fluid exceeds 3% to 4% moisture content, its boiling point drops significantly:
-
Phase Change Under Heavy Braking: Repeated stops from highway speeds along I-26 generate heat that transfers from brake pads through the caliper pistons into the fluid. Moisture in the fluid flashes into steam vapor.
-
Loss of Braking (Vapor Lock): Because vapor is compressible, pedal pressure only compresses the steam pockets instead of pushing the pistons, resulting in a sinking brake pedal and sudden loss of stopping power.
Sealed Pneumatic Pressure Bleeding Protocols
Pumping the brake pedal manually to bleed lines can tear worn master cylinder cup seals by pushing them past their normal travel limits into unpolished bore sections. Instead, technicians use automated pneumatic pressure bleeders:
-
Constant Positive Pressure: A sealed adapter attaches to the master cylinder reservoir, applying 15 to 20 psi of constant, air-free pressure to introduce fresh fluid.
-
Sequential Valve Flushing: Technicians open each caliper bleeder valve in sequence (typically starting from the wheel furthest from the master cylinder: Right-Rear, Left-Rear, Right-Front, Left-Front), expelling dark, moisture-laden fluid until clean, bubble-free fluid emerges.
Modern Chassis Dynamics: Multi-Link Suspensions and Computerized Alignments
Vehicle ride stability, cornering grip, and tire life rely on multi-link suspension systems. Unlike simple historic solid axles or standard MacPherson struts, independent multi-link arrangements use separate control links to independently control wheel geometry throughout the suspension stroke.
+-------------------------------------------------------------------------+
| INDEPENDENT MULTI-LINK CONTROL AXES |
+-------------------------------------------------------------------------+
| [ Upper Lateral Arm ] -> Governs Camber Angle through travel stroke |
| [ Lower Control Arm ] -> Carries Spring / Damper Loads, Lateral Track |
| [ Toe Control Link ] -> Sets Dynamic Directional Tracking Angle |
| [ Trailing Arm Link ] -> Manages Fore-and-Aft Acceleration & Braking |
| [ Ball Joints / Links ] -> Articulation points for dynamic road changes |
+-------------------------------------------------------------------------+
The Three Critical Alignment Angles
Proper suspension alignment requires measuring and balancing three geometric axes:
[ CAMBER ] [ CASTER ] [ TOE ]
(Front Wheel Face) (Side View Angle) (Top View Angle)
| | \ / \ | / \
| | \ / \ Steering | / \ Toe-In
| | | \ Axis | ---------
Zero Neg. \ | \ /
Camber Camber O Wheel Hub | \ / Toe-Out
-
Camber: The inward or outward tilt of the tire vertical centerline when viewed from the front. Negative camber angles the top of the tire inward toward the chassis, maximizing the tire contact patch during hard cornering. Excessive negative camber, however, wears out the inner tire tread.
-
Caster: The forward or rearward tilt of the steering axis relative to a vertical line viewed from the side. Positive caster tilts the steering axis rearward, creating a self-centering force that provides straight-line highway stability and steering wheel return.
-
Toe: The directional angle of the tires relative to the vehicle centerline viewed from above. Incorrect toe settings scrub the tire tread sideways against the pavement, causing rapid feathering and chewing through new tires in just a few thousand miles.
High-Definition 3D Laser Alignment Technology
Adjusting multi-link suspensions requires specialized alignment racks:
-
3D Target Reflectors: High-definition optical targets are clamped to each wheel rim. Overhead cameras track the vehicle's position in 3D space, recording live camber, caster, and toe angles down to hundredths of a degree.
-
Adjusting Eccentric Cams and Link Arms: Technicians loosen eccentric cam bolts or threaded link sleeves on lower control arms and toe rods, rotating the cams to move the wheel into exact factory alignment geometry under full vehicle weight.
Electronic Parking Brake (EPB) Integration and Calibration
Modern vehicles have replaced mechanical handbrake levers and steel cables with computer-controlled Electronic Parking Brake (EPB) systems.
[ Connect Bidirectional Scan Tool to Vehicle OBD-II Port ]
|
v
[ Command EPB System into "Brake Service / Retract Mode" ]
|
[ Internal Caliper Electric Motors Wind Completely Back ]
|
+-----------------------+-----------------------+
| |
[ Retract Confirmed ] [ Warning: Do Not Force ]
| |
(Caliper Piston Can Now Be (Manual C-Clamps Will Strip
Smoothly Pushed Back Straight) Internal Motor Drive Gears)
| |
+-----------------------+-----------------------+
|
v
[ Replace Pads, Rotors, & Shims; Torque Hardware ]
|
v
[ Command EPB System to "Exit Service / Calibrate Mode" ]
|
[ System Drives Pistons Forward & Calibrates Pad Gap ]
Servicing Caliper-Integrated Actuators
Vehicles equipped with EPB feature high-torque 12-volt DC electric motors bolted directly to the rear caliper housings. The motor spins an internal screw shaft that mechanically pushes the caliper piston against the brake pads when parking:
-
The Danger of Manual Retraction: Attempting to force an EPB piston back into the caliper using a manual C-clamp or ratchet tool will strip the plastic planetary gear sets or crack the internal drive screw, destroying the caliper assembly.
-
Diagnostic Scan Tool Retraction: Technicians connect a bidirectional diagnostic scanner to put the ABS/EPB module into "Brake Pad Service Mode." The module energizes the electric motors in reverse, backing the drive nut off the spindle. Once retracted, the piston can be pressed straight back without resistance.
-
Thickness Adaptation and Bedding: After installing new pads and rotors, the technician exits service mode using the scan tool. The EPB module cycles the motors forward until it senses current cutoff, recording pad clearance and calibrating clamp force.
Coastal Rust Abatement: Protecting Chassis Hardware in North Charleston
North Charleston's humid maritime climate presents unique chemical challenges that accelerate component wear and vehicle corrosion.
+-------------------------------------------------------------------------+
| COASTAL CHASSIS CORROSION DEFENSE MATRIX |
+--------------------------+-----------------------+------------------+-------------------+
| Chassis Component | Corrosion Threat | Mechanical Risk | Abatement Method |
+--------------------------+-----------------------+------------------+-------------------+
| Alignment Eccentric Cams | Salt Water Intrusion | Seizes Adjusters | Anti-Seize / Lube |
| Caliper Slide Pins | Moisture Past Boots | Caliper Hang-up | Ceramic Lubricant |
| Suspension Knuckle Ears | Galvanic Aluminum/Iron| Frozen Bushings | High-Temp Barrier |
| Steel Brake Tubing | External Salt Pitting | Blowouts / Leaks | Coated CuNi Lines |
| Rotor Hub Mating Face | Oxidation Buildup | Lateral Runout | Abrasive Disc Prep|
+--------------------------+-----------------------+------------------+-------------------+
Freeing and Protecting Seized Eccentric Cam Bolts
When salt spray settles around suspension hardware, steel adjustment bolts rust and seize inside the steel inner sleeves of rubber control arm bushings:
-
The Seized Bolt Problem: Once frozen, the bolt cannot be turned to adjust vehicle alignment without ripping the rubber bushing apart, turning a routine alignment into an expensive control arm replacement.
-
Induction Heat and Protective Pastes: Technicians use flameless magnetic induction heaters to expand rusted nuts without burning nearby rubber bushings. Freed hardware is wire-brushed clean and coated with a high-nickel or marine-grade synthetic anti-seize paste before reassembly, ensuring the bolts turn freely for future alignments.
Hub-Face De-Scaling and Surface Prep
Rust scale buildup between the wheel hub and the back of a brake rotor is a common cause of recurring brake shudder:
-
Mechanical De-Scaling: Technicians use abrasive conditioning discs to clean the iron hub face down to clean metal, removing all rust nodules.
-
Corrosion Protection: A light coat of high-temperature synthetic brake grease or an aerosol aluminum-based anti-corrosion barrier is applied to the hub face before mounting the new rotor. This keeps the mating surfaces flat, prevents lateral runout, and stops the wheel from seizing to the hub.
Diagnostic Road Testing and Dynamic Verification
Chassis and brake repairs conclude with systematic dynamic road testing to verify system safety, stability, and proper pad bedding.
+-------------------------------------------------------------------------+
| DYNAMIC CHASSIS VERIFICATION CHECKLIST |
+-------------------------------------------------------------------------+
| [√] Execute 5 to 8 moderate decelerations (45 to 15 mph) for pad bedding|
| [√] Confirm straight tracking along flat asphalt without steering pull |
| [√] Check for zero brake pulsation through the pedal or steering wheel |
| [√] Verify steering wheel centering while cruising at highway speeds |
| [√] Confirm ABS and stability control lights remain off under test stops|
+-------------------------------------------------------------------------+
Pad-to-Rotor Friction Material Bedding
New brake pads and rotors require a controlled break-in process to establish a transfer layer of friction material:
-
The Bedding Process: Technicians perform a series of moderate decelerations from 45 mph down to 15 mph, avoiding complete stops to prevent uneven pad material deposits. This heats the pad compound, burning off manufacturing resins and depositing a uniform layer of friction material onto the rotor face.
-
Preventing Vibration: Proper bedding prevents friction inconsistencies that can cause pedal pulsation and brake squeal down the road.
Frequently Asked Questions (FAQ)
What causes a brake pedal to feel soft or spongy after driving in traffic?
A spongy brake pedal typically indicates moisture contamination in the brake fluid. Glycol-based brake fluid naturally absorbs moisture from coastal air. Under heavy braking, heat from the calipers boils this moisture into steam pockets. Because gas is compressible, pedal pressure compresses the vapor instead of engaging the brake pads, causing a spongy pedal or temporary loss of braking power (vapor lock).
Why do brake calipers seize more frequently in coastal areas like North Charleston?
Coastal humidity and airborne salt spray penetrate the rubber dust boots protecting caliper slide pins and pistons. The salt accelerates rust formation on steel guide pins, locking the caliper in place. A seized caliper drags the brake pads continuously against the rotor, causing rapid pad wear, overheating the wheel hub, and pulling the vehicle to one side under braking.
Can rear brakes on modern vehicles be serviced without diagnostic scan tools?
Most modern vehicles equipped with an Electronic Parking Brake (EPB) require a bidirectional diagnostic scan tool to service rear brakes safely. The scan tool commands the electronic parking brake actuator motors to retract fully into "service mode." Forcing the pistons back with mechanical clamps without retracting the motors will strip the internal plastic gears and ruin the calipers.
What causes a car to pull to one side while driving on a straight highway?
Vehicle pulling can stem from uneven tire pressure, uneven tire wear, or incorrect suspension alignment geometry (such as mismatched caster or camber angles from left to right). A vehicle will pull toward the side with more positive camber or less positive caster. Additionally, a dragging brake caliper or broken control arm bushing can pull the car off course during acceleration or braking.
How often should a complete brake fluid flush be performed in Charleston?
Due to high relative humidity and warm coastal temperatures, automotive manufacturers recommend testing and flushing brake fluid every 24 to 36 months, or whenever an optical refractometer shows moisture content exceeding 3.0%. Timely fluid flushes prevent internal corrosion within expensive Anti-Lock Braking (ABS) modulators and eliminate the risk of brake fade.
